Large 9 CBM Fly Ash Vacuum Truck – Multi-Function Suction Truck with Robuschi vacuum, Isuzu chassis, EU PTO & Solberg filtration, export-ready industrial solution.
Mô tả sản phẩm
Đánh giá
Hướng dẫn mua hàng
9 CBM Fly Ash Vacuum Truck- Multi-Function Suction Truck For Sale

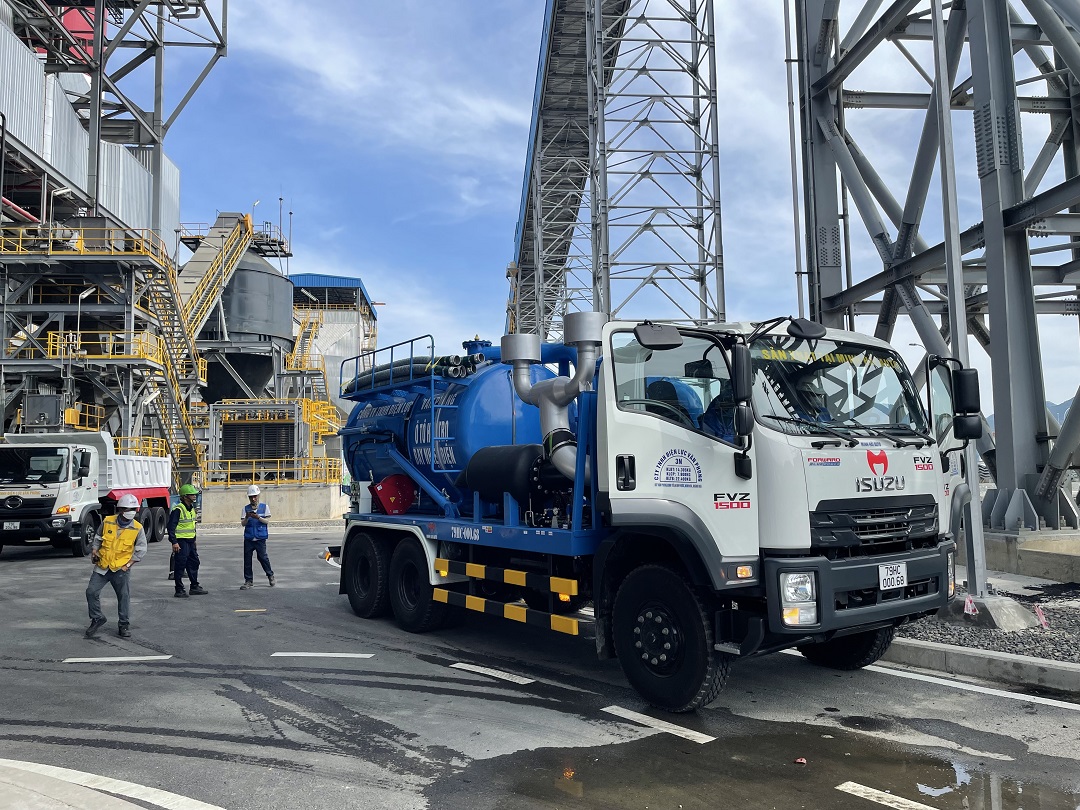

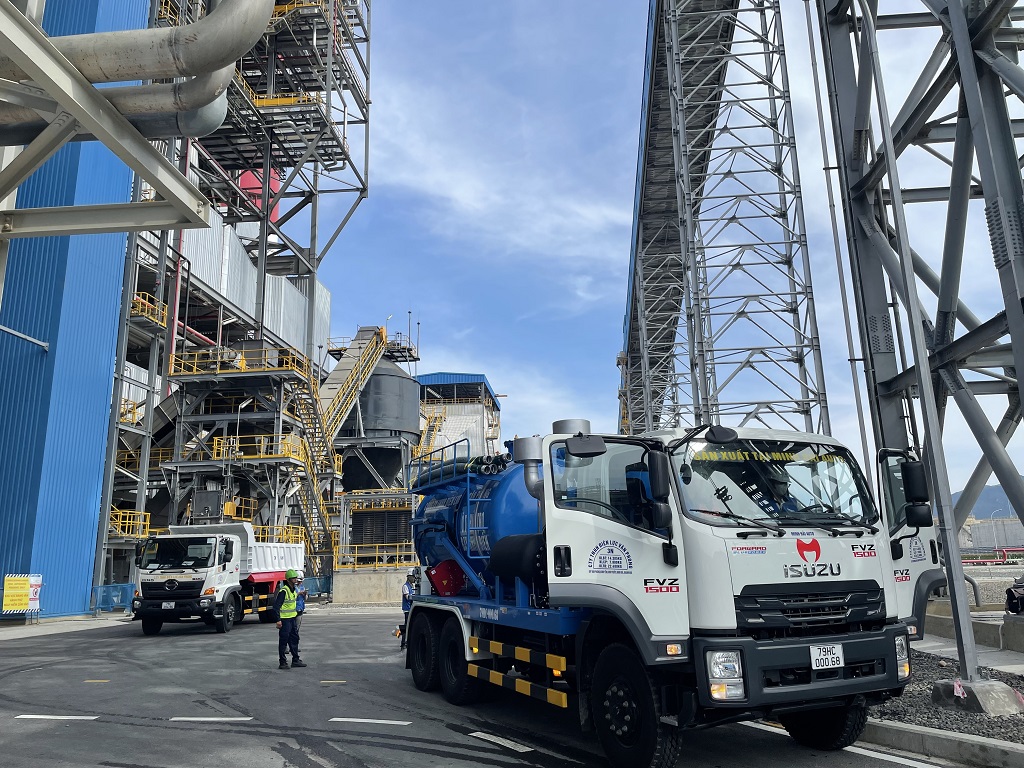

The 9 CBM FLY ASH VACUUM TRUCK – MULTI-FUNCTION SUCTION TRUCK is a high-capacity industrial vacuum vehicle specially designed for collecting, transporting, and discharging fly ash, dry powder materials, and industrial waste across heavy duty environments such as thermal power plants, cement factories, steel mills, bulk material terminals, and industrial parks.
This 9 CBM FLY ASH VACUUM TRUCK – MULTI-FUNCTION SUCTION TRUCK combines robust suction performance with a large tank capacity to deliver efficient material recovery, reduced downtime, and superior environmental compliance — a solution ideal for global export markets requiring reliable industrial cleaning and bulk handling equipment.
The 9 CBM FLY ASH VACUUM TRUCK – MULTI-FUNCTION SUCTION TRUCK is part of our premium industrial vacuum suction lineup, balancing large volume collection with multi-functional operation. Compared to smaller models, the 9 CBM capacity significantly increases operational efficiency by allowing longer continuous working cycles with fewer unloads.
Fully enclosed suction and pneumatic discharge systems prevent dust emissions and ensure safe, clean operation — an essential feature for modern industrial and environmental applications.
Main Features of 9 CBM FLY ASH VACUUM TRUCK – MULTI-FUNCTION SUCTION TRUCK
Powerful High-Capacity Vacuum Suction
The 9 CBM FLY ASH VACUUM TRUCK – MULTI-FUNCTION SUCTION TRUCK is equipped with a top-end vacuum system that creates strong negative pressure throughout the large tank volume, enabling rapid suction of fly ash, cement dust, lime minerals, and other dry bulk materials.
Large 9 CBM Tank for Extended Operation
With a spacious 9 m³ waste suction tank and a dedicated 1 m³ water tank for dust suppression and self-cleaning, this model reduces unloading frequency and increases productive uptime.
The large tank capacity also enhances material handling in high-demand environments, minimizing operational interruptions.
Multi-Function Suction & Pneumatic Discharge System
This MULTI-FUNCTION SUCTION TRUCK supports both dry material suction and pneumatic discharge. After suction, materials are pneumatically pushed into silos or storage tanks through an enclosed system — eliminating secondary dust and improving safety and environmental compliance.
Durable Structural Design
Built with rugged materials and reinforced structure, the 9 CBM FLY ASH VACUUM TRUCK is engineered to withstand continuous industrial operations, vibration and material abrasion typical of heavy duty sites.

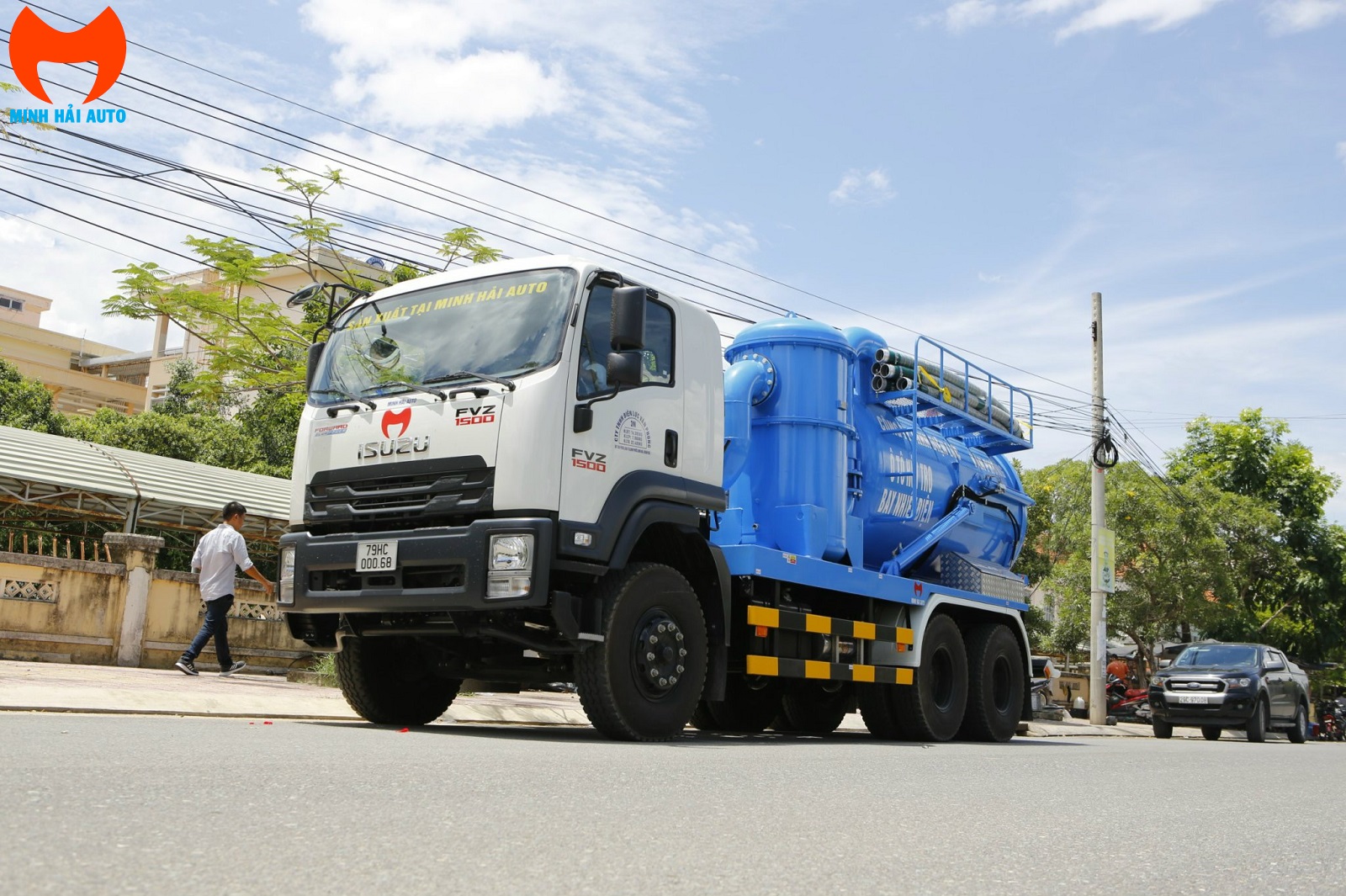

This 9 CBM FLY ASH VACUUM TRUCK – MULTI-FUNCTION SUCTION TRUCK is mounted on a robust chassis from Isuzu, known worldwide for fuel-efficient diesel engines, high load capacity, and long service life — ensuring dependable performance in harsh industrial applications:
Waste Suction Tank: 8 CBM – Large capacity tank designed for extended operation cycles, reducing unloading frequency and increasing daily productivity.
Large 8 CBM volume allows handling highvolume fly ash and dry bulk materials in power plants and cement factories.
Optimized cylindrical tank structure enhances internal pressure stability during high vacuum operation.
Water Tank: 1 CBM – Integrated clean water tank supporting dust suppression during suction and assisting internal tank cleaning after discharge.
1 CBM water capacity ensures effective dust control, improving environmental compliance on industrial sites.
Separate compartment design prevents crosscontamination between waste and clean water.
All tanks are manufactured from highstrength AH36 steel, widely used in shipbuilding and heavyduty industrial applications.
AH36 material provides superior structural strength, impact resistance, and longterm durability under negative pressure conditions.
Reinforced internal stiffeners enhance tank rigidity and prevent deformation during heavy vacuum loading.
Anticorrosion treatment and industrial-grade coating ensure long service life even in harsh working environments.
Vacuum Pump – Robuschi RB-DV125
The vacuum system uses a Robuschi RB-DV125 pump from one of the world’s leading vacuum technology manufacturers. This pump features:
Airflow Capacity: up to 5,473 m³/h
Vacuum Pressure: up to 0.9 bar
Industrial vane/blower design for stable highvolume suction
The Robuschi vacuum pump delivers the power needed for continuous heavy duty industrial suction tasks with exceptional reliability.
Water Pump System – HPP High-Pressure EU
The water system is equipped with a high-pressure pump from HPP — a top-tier European brand providing strong, stable water flow for dust control and tank cleaning:
Model: HPP CLW 70/130 – highpressure water pump from a leading European manufacturer (HPP).
Operational Role: Provides strong, stable water flow for effective dust suppression during suction operations.
Tank Cleaning Support: Delivers sufficient pressure to wash and clean the interior of the main tank after each job cycle.
Durability: Designed for heavyduty industrial use with robust construction and corrosion-resistant materials.
Performance Stability: Consistent highpressure output with low maintenance, suitable for continuous operation in harsh environments.

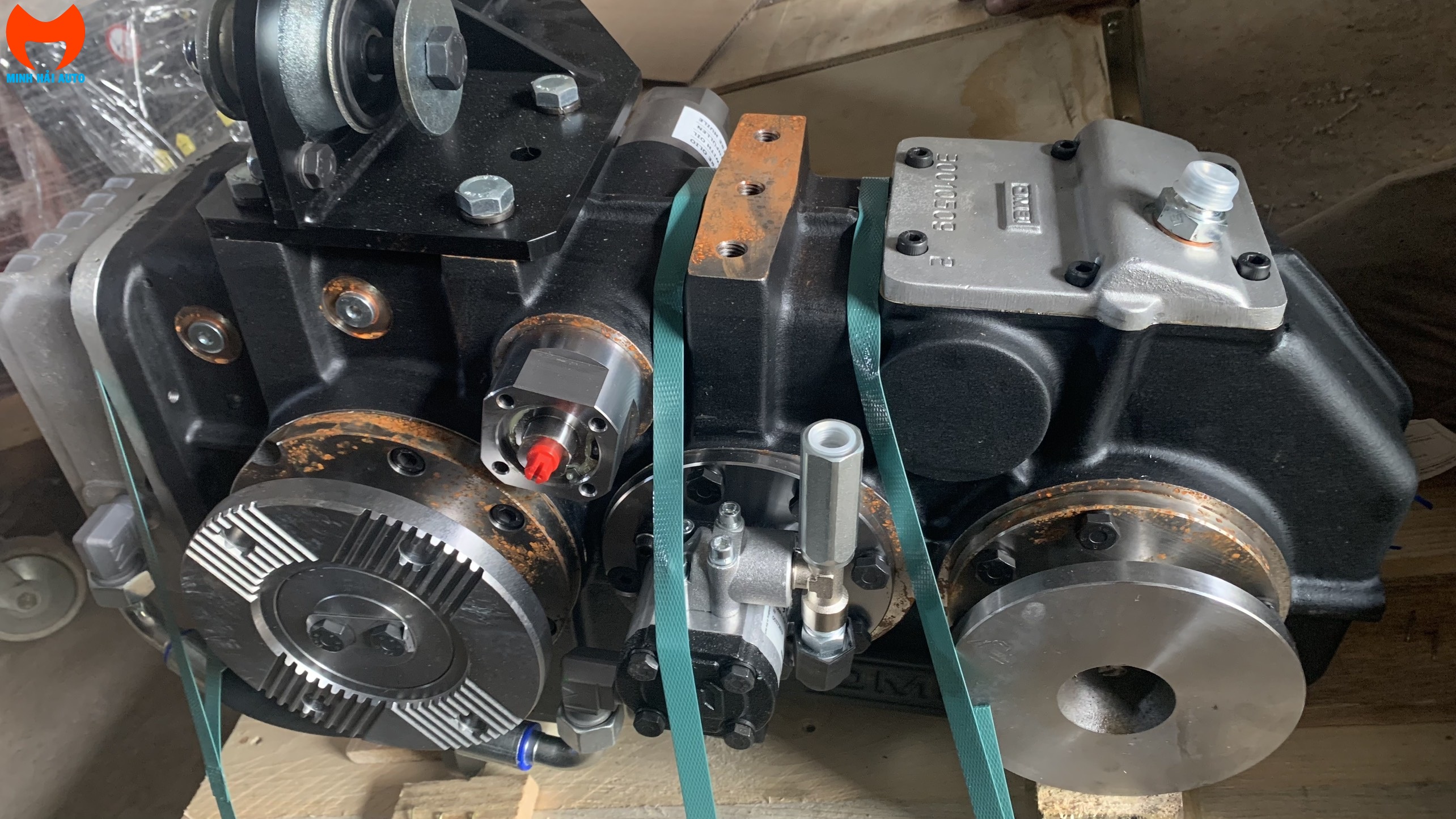

Power Take-Off (PTO) – OMSI Split-Shaft
The PTO system relies on a splitshaft PTO by OMSI, a world-class manufacturer, providing large power transmission capacity to the vacuum and auxiliary systems while minimizing drivetrain stress — ideal for heavy industrial workloads:
Model: OMSI PFT 3000/4AVE – premium split-shaft PTO designed for heavy industrial applications.
Manufacturer: OMSI – globally recognized leader in highperformance PTO and power transmission technology.
SplitShaft Design: Allows direct power transfer from the vehicle’s main drivetrain to the vacuum and auxiliary systems with minimal energy loss.
High Torque Capacity: Engineered to handle high torque loads required by large vacuum pumps and hydraulic systems on industrial suction trucks.
Smooth Engagement: Precision gearing ensures smooth engagement and disengagement, reducing wear on the drivetrain.
Continuous Operation: Rated for extended continuous duty cycles, ideal for heavyduty work environments like power plants and cement factories.
Reliability: Built with premium bearings and hardened gear sets for long service life under demanding conditions.
Low Maintenance: Designed for serviceability with easy access points and stable lubrication pathways.
ExportReady Performance: Meets international industrial PTO standards, making it suitable for export models requiring high power transmission efficiency.

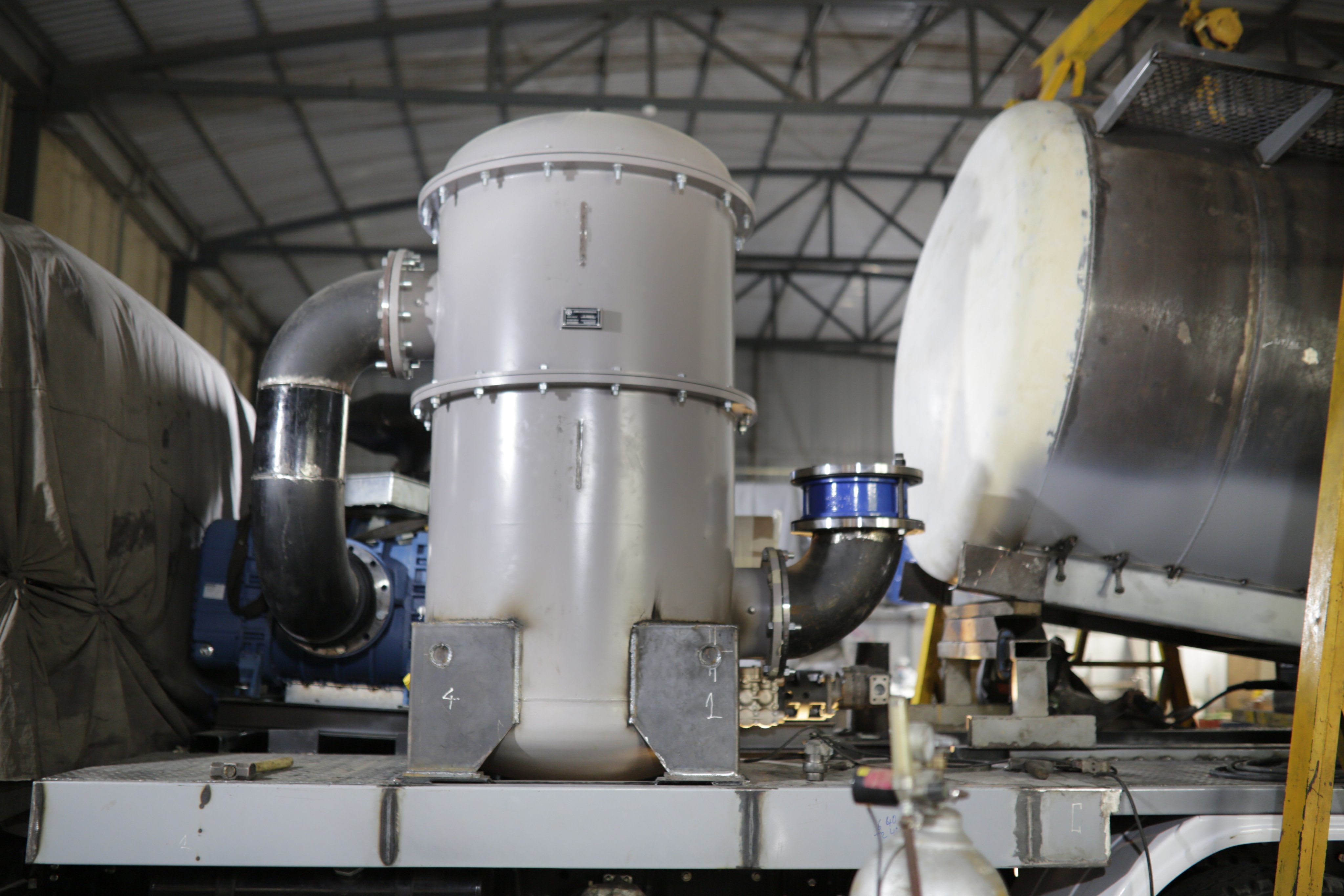

Filtration & Silencing – Solberg USA
The truck’s filtration and noise reduction system uses high-quality modules from Solberg (USA), providing:
Effective dust trapping prior to vacuum pump
Extended component life
Significant operational noise reduction
Improved operator comfort and environmental performance
Silencer: reduce the noise when the truck working
This filtration system protects vacuum components and optimizes suction efficiency.
Hydraulic System – EU Premium Components
The hydraulic system integrates premium European hydraulic components including:
High-efficiency pumps: piston type Hyva- Italia
Stable pressure control valves
Reinforced cylinders and valves
This ensures smooth tank lift, stable operation, and long service life under high load conditions.
Safety & Control
Equipped with advanced monitoring and control systems, including:
Pressure gauges and vacuum monitoring meters
Warning lights and alarm system
Water level indicator
Emergency stop and system fault sensors
These systems ensure safe and precise industrial operation.

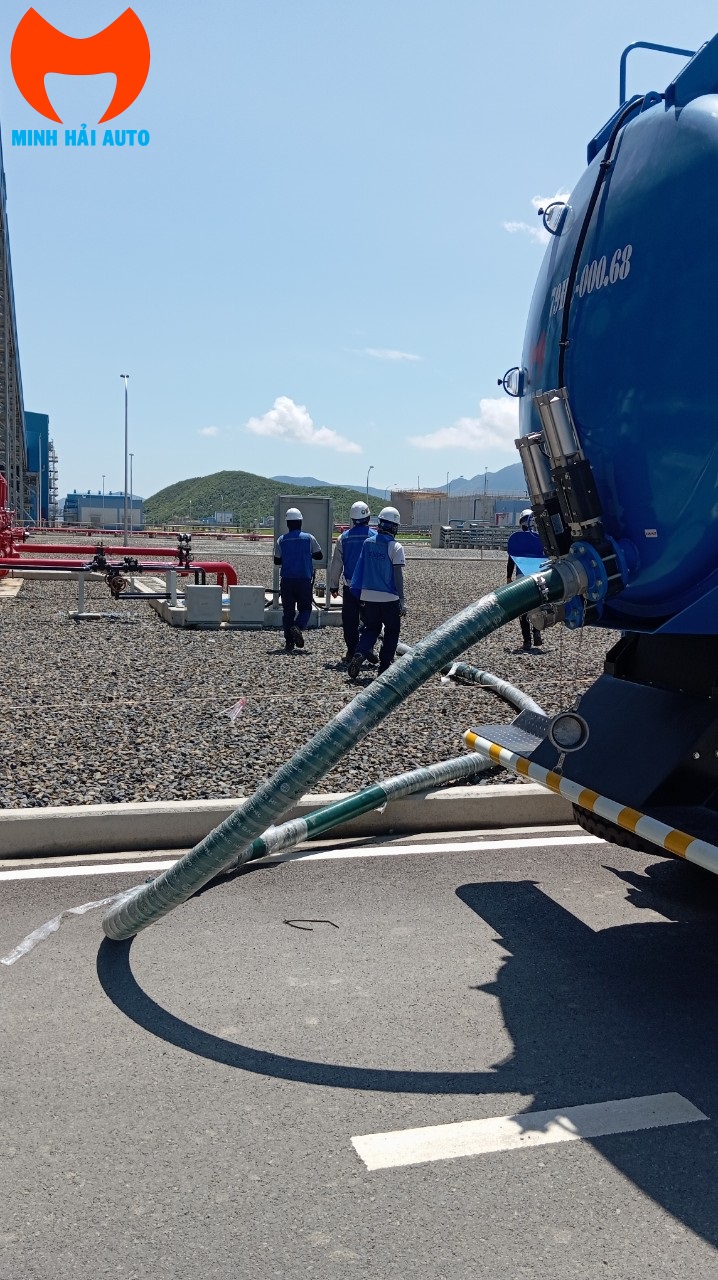

The 9 CBM configuration works by creating a strong negative pressure environment inside the sealed suction tank via the premium Robuschi vacuum pump. The pressure differential draws fly ash and dry materials through industrial hoses into the tank. Filtration modules separate dust before reaching the pump, extending component life and ensuring consistent performance.
After suction, compressed air is introduced for pneumatic discharge, returning materials into silos or storage containers through an enclosed pipeline — significantly reducing dust dispersion.

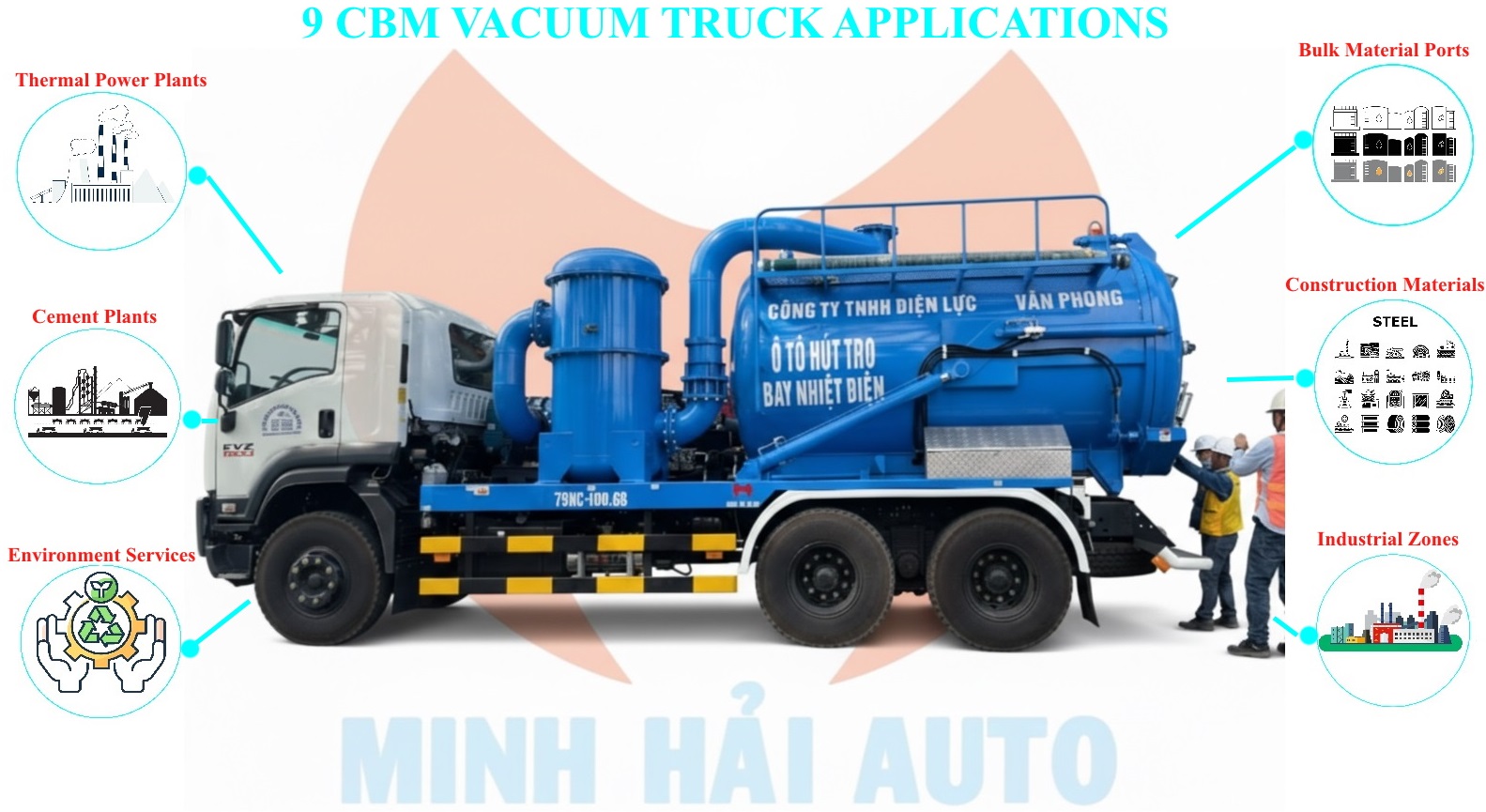

Applications & Industries for 9 CBM Vacuum Suction Truck
High Capacity & Powerful Suction: Exceptional suction volume and tank size for large scale jobs.
Premium Global Components: Imported vacuum, PTO, filtration, and hydraulic systems.
Export-Ready for International Use: Adaptable configuration for global market needs.
Enhanced Safety & Controls: Intelligent systems for reliable industrial operation.
